        • Overview

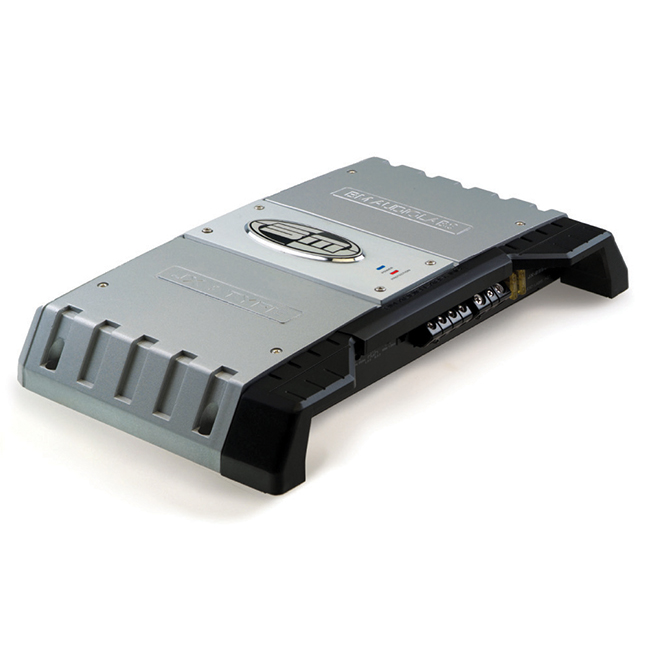

        • Aluminium die cast high efficiency MOSFET device bridgeable power amplifiers with high value components for wide bandwidth processing
        • Features
        • CEA-2006 Complaint Rating

          Output power @ 14,4v (≤0.2% THD+N):
          • 4 ohms (continuous/rms):
          75w x 4 (JX-4988Z)
          100w x 4 (JX-6988Z)
          135w x 2 (JX-2988Z)
          1800w x 1 (JX-3DQZ)

          THD (% at rated power; 50Hz - 1kHz): ≤0.04
          Active LPF (-3dB): 50Hz - 250Hz
          Active HPF (-3dB): 80Hz – 1.2kHz
          Subwoofer filter (10Hz/50Hz): 15Hz - 50Hz
          Signal to noise ratio (at rated power): 100dB
          Input sensitivity (max): 200mV - 3V
          Damping factor: 280
          Unit: 1 unit, fused & installation accessories
